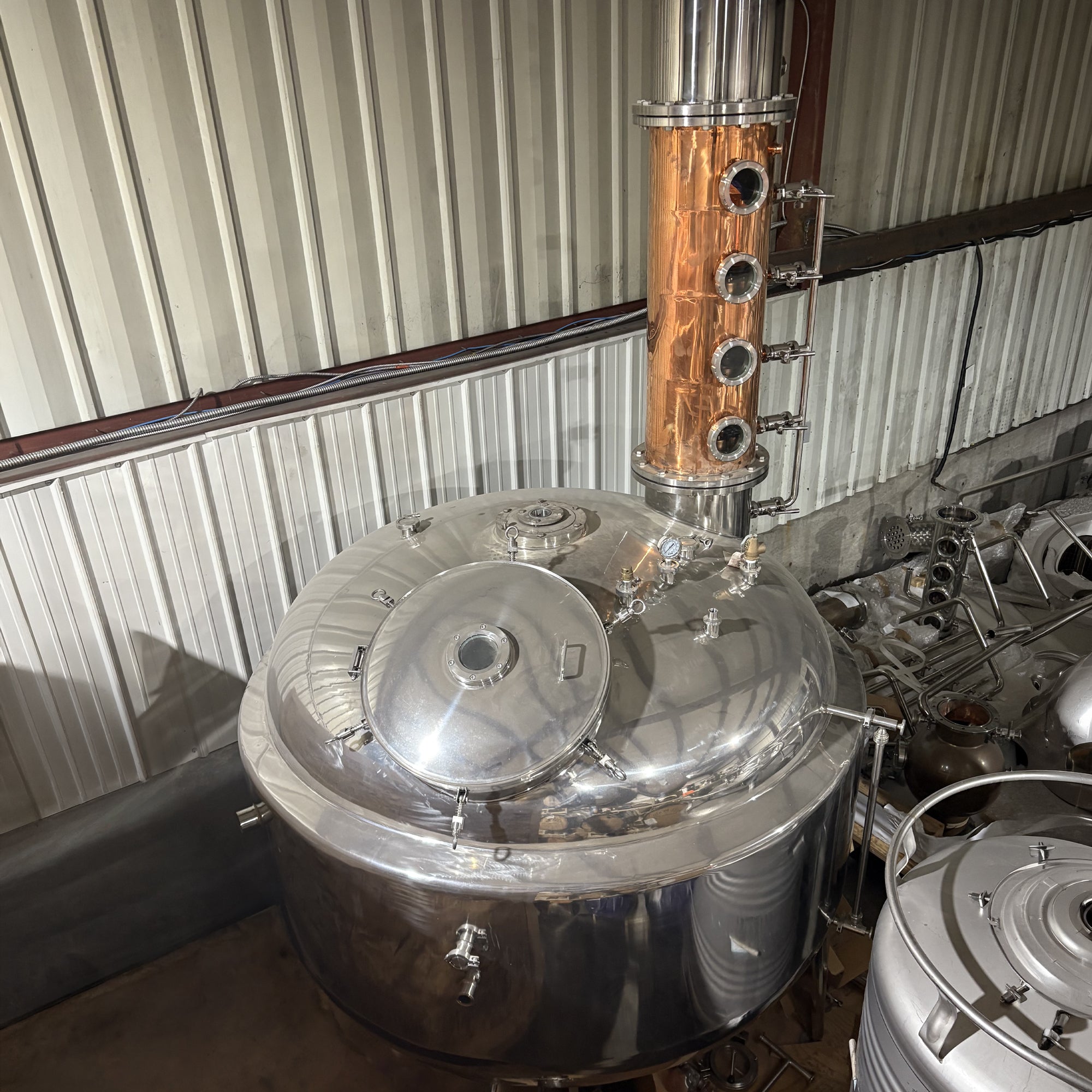

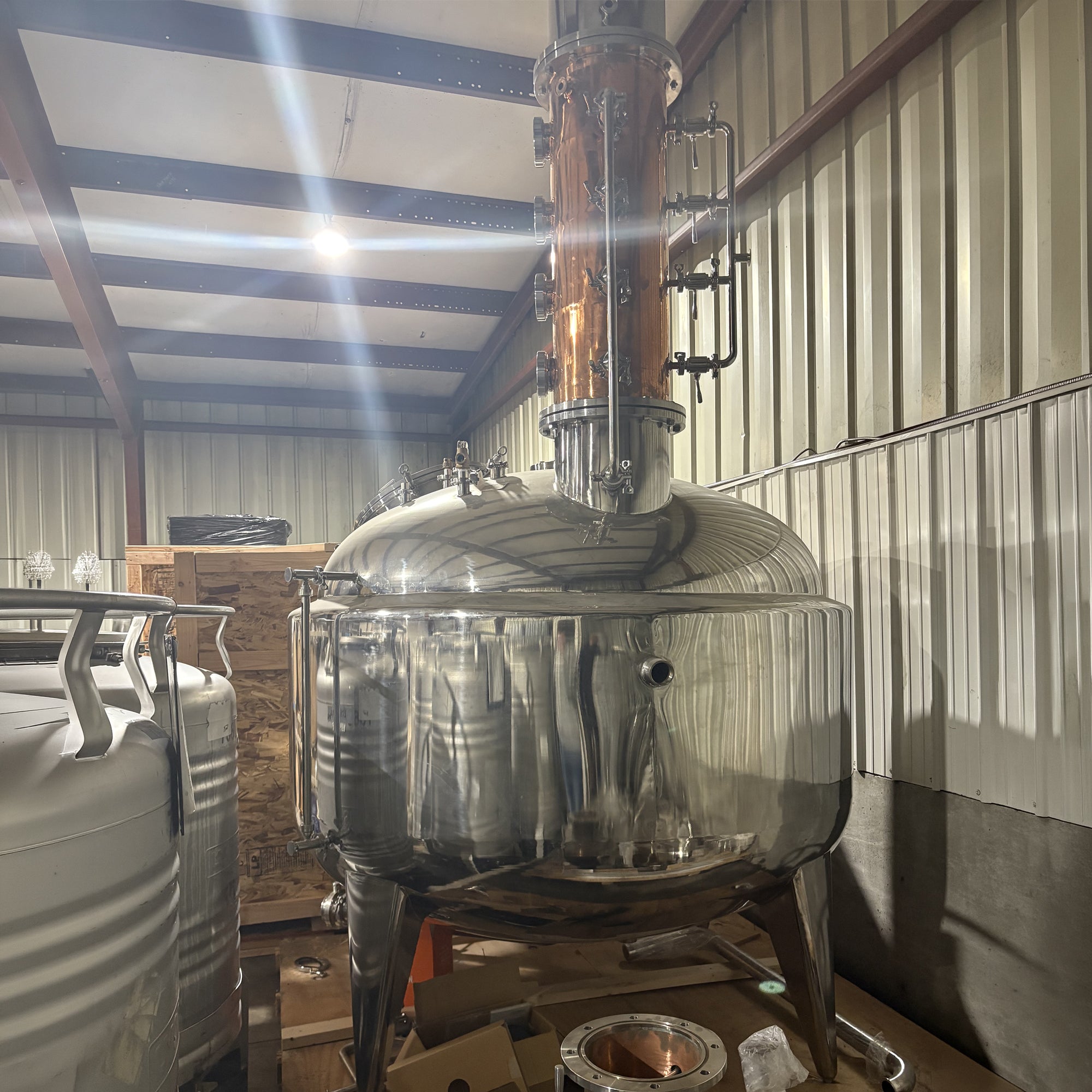

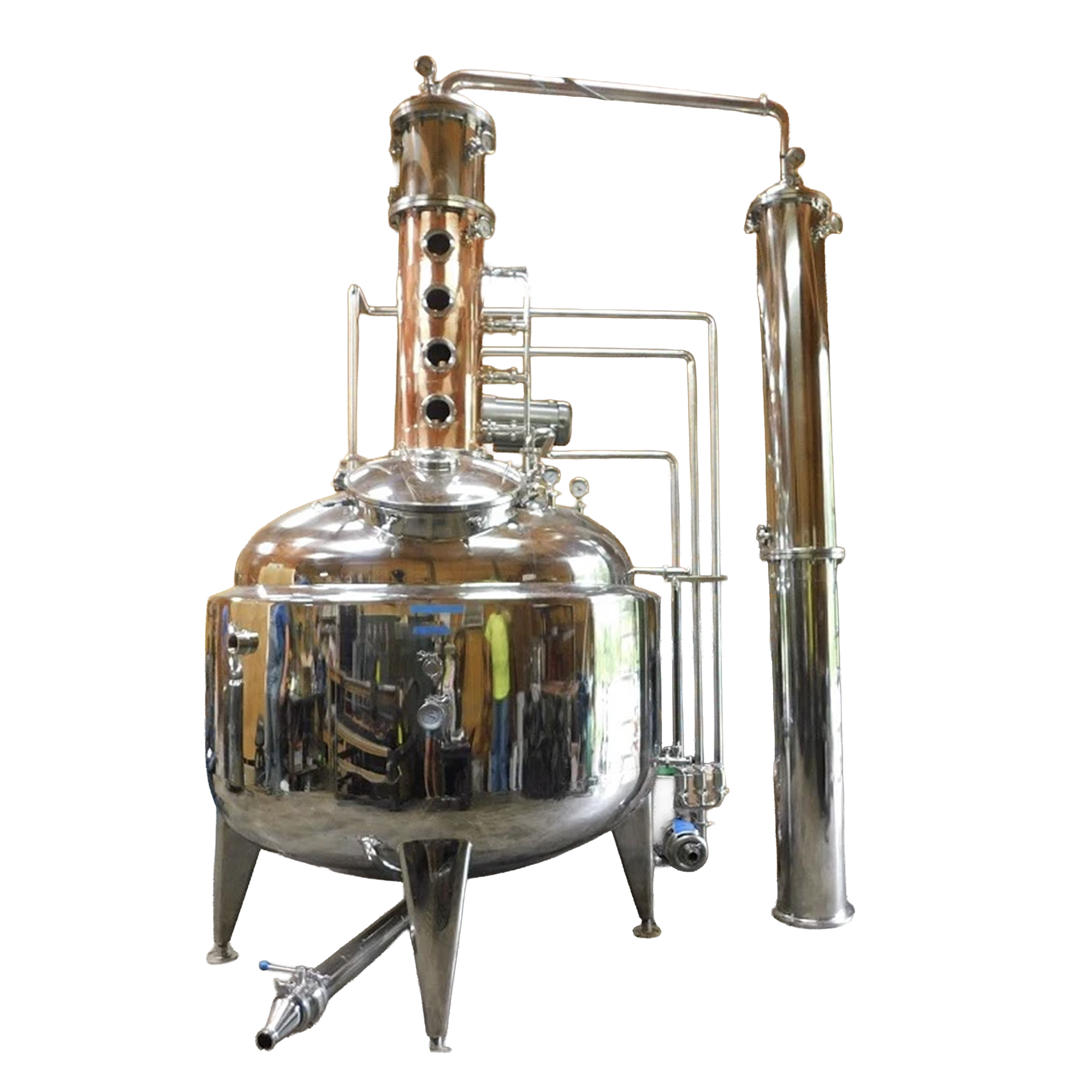

500 Gallon Jacketed Steam-Heated Pro Series Whiskey Still - New, Never Used
Built for serious production, this 500-gallon Pro Series whiskey still delivers power, flexibility, and precision. Featuring a 4-plate bubble column and steam-jacketed boiler, it’s capable of producing up to 160 proof in a single run while giving you full control over flavor and output.
If you're ready to step up your distillation program, this system checks all the boxes. This 500-gallon jacketed still is constructed from high-quality stainless steel and copper, combining durability with the performance needed for consistent, high-proof output. The 4-plate bubble column allows for increased refinement, while the ability to open plate drains and shut off the dephlegmator gives you full control to run in pot still mode when needed.
This setup is built for versatility. Whether you’re producing whiskey, bourbon, brandy, or moonshine, you can fine-tune your run by adjusting plate engagement and reflux. The steam jacket ensures even heating, and the integrated CIP system keeps cleaning efficient between runs.
Standing just under 13 feet tall and over 15 feet wide with the condenser, this system is ready for a production environment. It has been professionally palletized and is ready to ship from Lawrenceburg, Kentucky. If you’re looking for a turnkey upgrade without the wait time of new fabrication, this is a strong opportunity.
Important Notes
- New, never used system
- Located in Lawrenceburg, Kentucky
- Professionally palletized and ready for immediate shipment
- Buyer is responsible for shipping and handling
- Condenser with base and large pump are included but not shown in photos
- Requires low-pressure steam boiler for operation
SPECIFICATIONS
| Capacity | 500 Gallon Operating (575 Gallon Total) |
| Construction | 304 Stainless Steel Boiler with Copper Components |
| Heating Type | Steam Jacketed (15 PSI, fully insulated) |
| Column | 14" Diameter, 4 Bubble Plates |
| Max Proof | Up to 160 proof |
| Agitator | 5 HP, 230VAC, 3-Phase, Variable Speed (0–45 RPM) |
| Manway | 16" Clamp-Down with 4" Sight Glass |
| Relief Valves | 5 PSI (Boiler), 15 PSI ASME (Jacket) |
| Drain Valve | 4" Tri-Clamp Butterfly Valve |
| Dephlegmator | 14" Tube & Shell (Pre-Condenser) |
| Condenser | 12" x 62" Tube & Shell |
| Sight Glasses | 4 in Column |
| CIP System | 4 Spray Balls in Column, 2 in Boiler |
| Thermometers | Multiple 4" and 3" Face Gauges |
| Output | Stainless Parrot’s Beak |

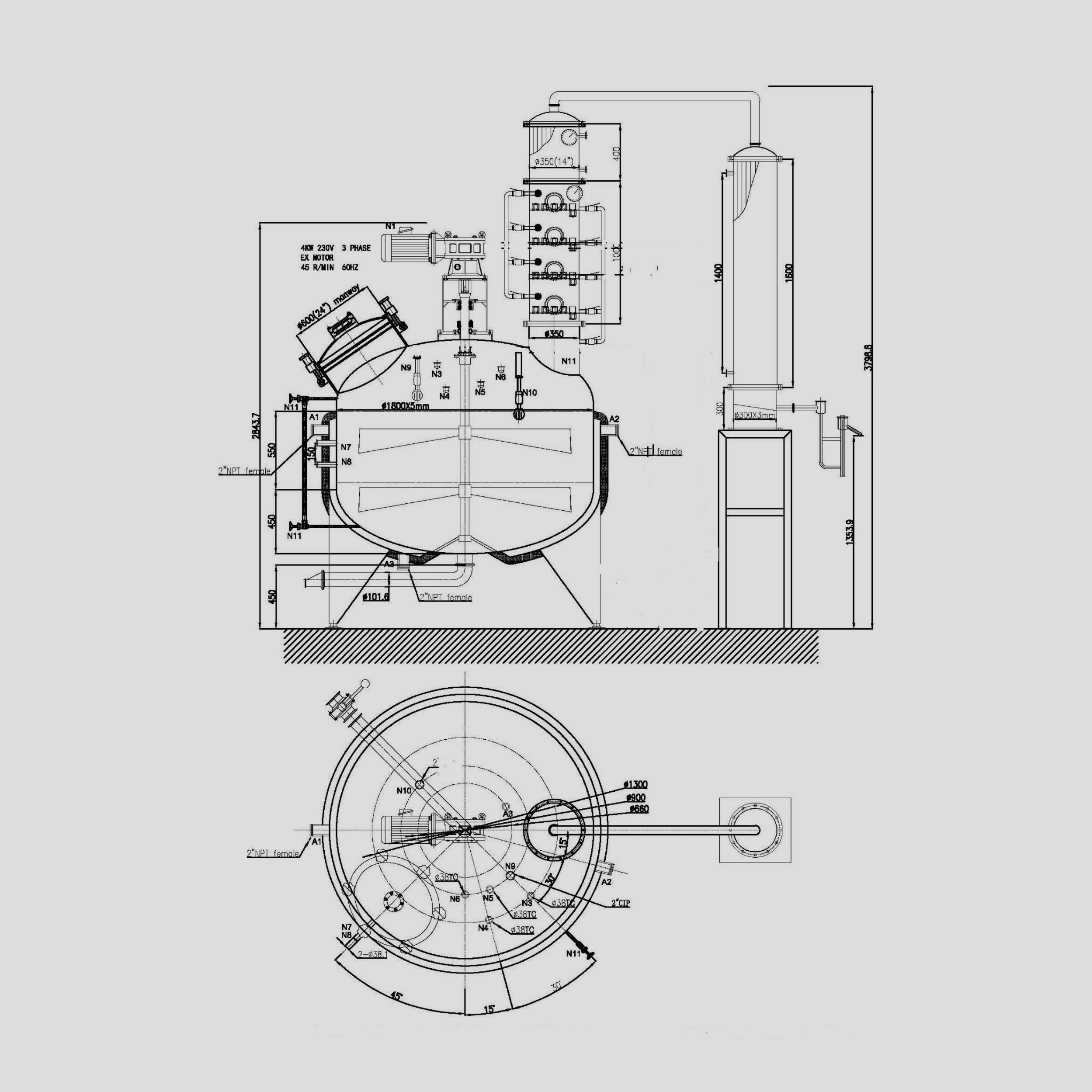

| Dimensions | 12' 9" H (down to 11' 8"), 15' 7" W with condenser |
| Finish | Mirror polish |
